mod_zstd is a Zstandard compression module for Apache HTTPD Server.
- Based on mod_brotli
- Inspired by mod_zstd by @foglede
Windows MSVC binaries are provided in releases, with zstd dll (shared linking)
Available for x64 - vs16 (14.29)& vs17 (14.44) - AVX / AVX2 or SSE2 (see bininfo.csv)

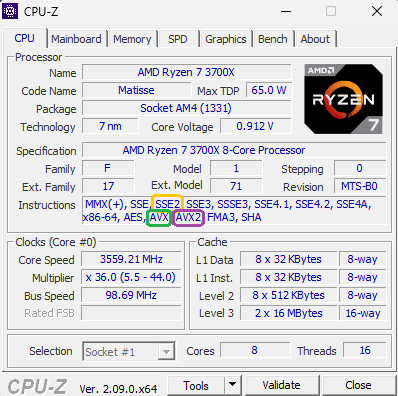

- Check your cpu supported instructions with CPU-Z
httpd.conf:
# Load module
## startuplog, ex: [AH30307: mod_zstd cl:11, wk:16 (v1.0.0, zstd 1.5.7)]
## /server-info, ex: Server Version: Apache/2.4.63 (Win64) OpenSSL/3.4.1 mod_fcgid/2.3.10.4 mod_zstd/1.0.0
LoadModule zstd_module modules/mod_zstd.so
<IfModule zstd_module>
# Compression
## zstdCompressionLevel: 0-22 (default: 15)
## ⚠️ > 19 fail on Browser (Chrome, Firefox)
ZstdCompressionLevel 10
# Specifies how to change the ETag header when the response is compressed
## ZstdAlterETag: AddSuffix, NoChange, Remove (default: AddSuffix)
ZstdAlterETag AddSuffix
# Filter
FilterDeclare COMPRESS_ZSTD CONTENT_SET
## by default, compress all Content_Type but it can be more specific.ex .
## FilterProvider COMPRESS_ZSTD ZSTD_COMPRESS "%{Content_Type} =~ m#^text/xml\b#"
FilterProvider COMPRESS_ZSTD ZSTD_COMPRESS "%{Content_Type}=~ /.*/"
FilterProtocol COMPRESS_ZSTD ZSTD_COMPRESS change=yes;byteranges=no
## Set to 1 for debug
FilterTrace COMPRESS_ZSTD 0
# Exclude
## Now we exclude by extension what will not be compressed
## If you have other encoding filter, you may add 'no-brotli no-deflate'
SetEnvIfNoCase Request_URI \.(?:gif|jpe?g|png|tar|zip|rar|gzip|gz|avi|mpeg|mpg|mov|mp3|mp4|exe|asf|ts|wmv|wma|qt|aiff|aif|aifc|mpga|mp2|ogg|tiff|m4a|aac|pdf|swf)$ no-zstd dont-vary
# Make sure proxies don't deliver the wrong content
## https://stackoverflow.com/questions/970798/what-does-this-configuration-in-apache-mean
Header append Vary User-Agent env=!dont-vary
# Filter note
ZstdFilterNote Input zstd_in
ZstdFilterNote Output zstd_out
ZstdFilterNote Ratio zstd_ratio
LogFormat '"%r" %{zstd_out}n/%{zstd_in}n (%{zstd_ratio}n)' zstd
CustomLog logs/access_log zstd
</IfModule>| size | time (sec) | level | |
|---|---|---|---|
| plain | |||
| 7.48 MiB | 0.326161 | ||
| zstd (workers: 16) | |||
| 1.28 MiB | 1.843991 | 22 | |
| 1.47 MiB | 1.077741 | 19 | |
| 1.56 MiB | 0.818978 | 16 | |
| 1.85 MiB | 0.576764 | 15 | |
| 1.85 MiB | 0.651635 | 11 | |
| 2.13 MiB | 0.351167 | 5 | |
| 2.11 MiB | 0.307403 | 0 | |
| br (window: 24) | |||
| 1.08 MiB | 7.500807 | 11 | |
| 1.70 MiB | 1.111671 | 9 | |
| 1.74 MiB | 0.635557 | 7 | |
| 1.81 MiB | 0.433002 | 5 | |
| 2.58 MiB | 0.291109 | 0 |
